Ford 4R70W, 4R75W and E variants: the differences that need checking
These transmission names describe related units, not a guarantee that complete transmissions or individual parts interchange. The useful comparison is by component, build period and application. A sensor-compatible part can still be wrong mechanically; a part that fits physically can still produce the wrong signal.
Sonnax groups the 4R70E/W and 4R75E/W in the same 2.84/1.55 ratio family for its direct-drum kits, while listing the AODE separately at 2.40/1.46. Those figures describe the first- and second-gear ratio families in that catalog. They do not establish complete-unit compatibility. Sonnax, Stop Chasing AODE, 4R70W Direct Clutch Drum Problems
An identification guide, not a dimensional drawing or a swap instruction.
Why the speed-sensing changes matter
ATRA's 2009 seminar material documents a 2004 output-speed-sensing change: the later arrangement reads 24 extended parking-pawl lugs rather than the earlier six holes around the ring gear. It explicitly warns against mismatching those arrangements. The controller depends on the expected relationship between rotation and sensor pulses. ATRA, 4R70W/4R75E Interchange Information, printed p. 75
The same document identifies a non-magnetic sun shell for the 4R70E/75E input-speed-sensor arrangement and a clearance notch in the centre support for the turbine-speed sensor. It also requires the sun shell, bearing and forward sun gear to be changed together for the conversion it describes. These are specific component relationships, not a general “later is stronger” story. ATRA, printed pp. 65 and 71–73
Valve bodies have their own identification history
Sonnax's valve-body chart separates 1996–97 soft-wire units, 1998–2000 molded-lead-frame units, 2001–08 units and 2009-on units. It also gives casting and solenoid-identification clues. Notice that these boundaries are not simply the same as the 2004 sensor change. Several development timelines overlap inside the same transmission family. Sonnax, AODE, 4R70W/75W Valve Body Identification
| Evidence to check | What it can establish | What it cannot establish alone |
|---|---|---|
| Vehicle and transmission identification | The application being serviced | What previous rebuilds changed |
| Ratio-family listing | The gearing covered by a named component | Compatibility of every other component |
| Speed-sensor and target details | Whether the signal arrangement matches | Correct hydraulic calibration |
| Valve-body casting and harness | Which documented version is present | Suitability of a complete donor transmission |
A replacement listing has a defined scope
For example, Sonnax's 31-tooth forward sun gear is listed for 2.84/1.55 gearsets across these four named variants. That is evidence for that particular replacement part. It should not be expanded into permission to mix unrelated drums, bearings or controllers. Sonnax, Heavy Duty Forward Sun Gear 76612A-01
Likewise, a higher-looking model number is not a substitute for an application-specific torque rating or durability test. The sources here support identification and selected engineering changes; they do not supply a universal horsepower limit for an aged or modified transmission.
Read the family as a set of systems
Start with the exact vehicle and unit, then match the relevant service information, electronics and component combinations. That approach makes the differences understandable without overselling a swap. For the underlying mechanism, our torque-converter guide explains how fluid drive and lock-up differ, while CVT, DCT and AMT puts conventional automatics in context.

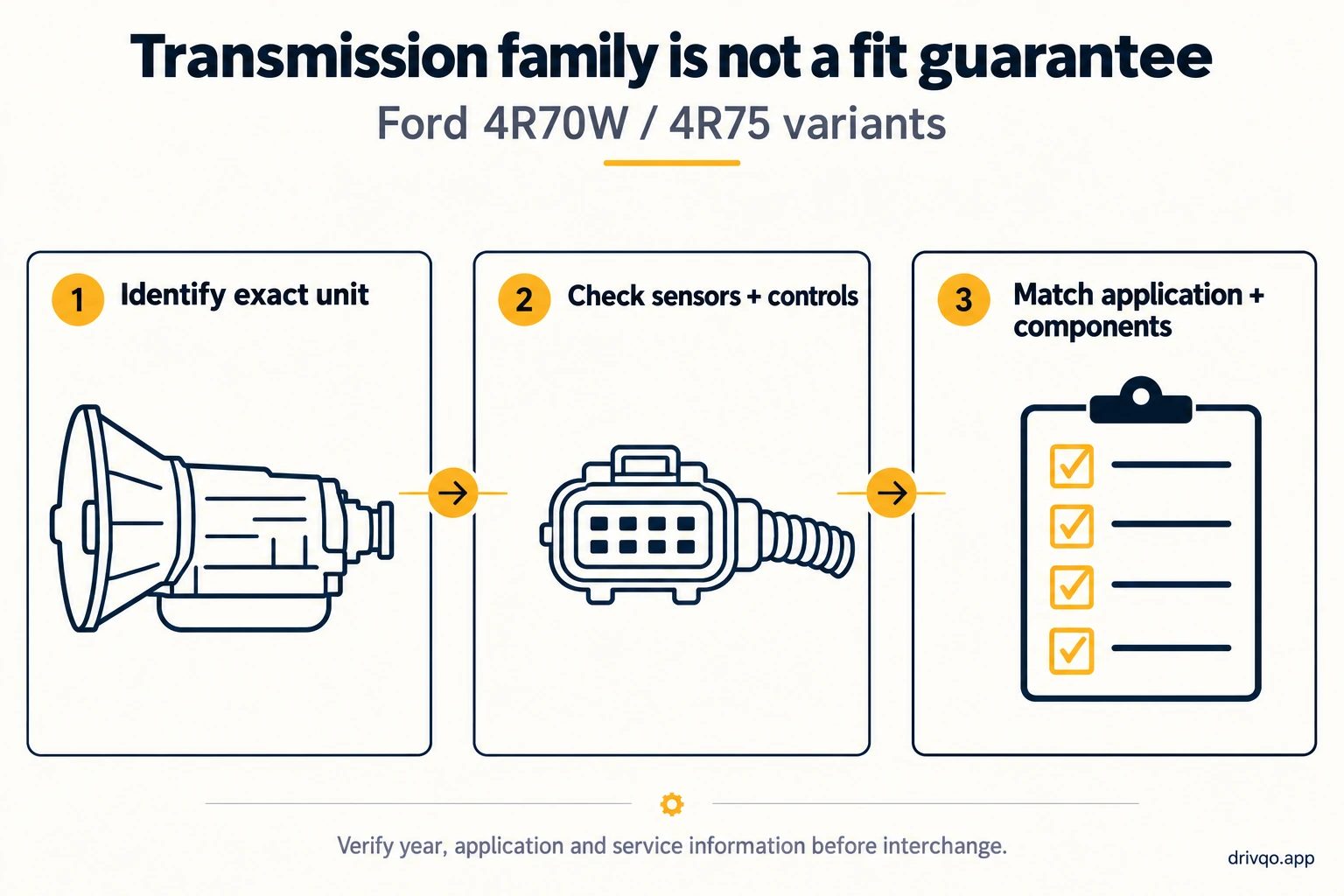

Illustration: AI-generated and checked against the explanation. Conceptual only; sources are linked beside the relevant claims.
